Gate Valves

Gate valves require only small installation lengths, especially for larger nominal sizes, and also offer a large conductance for best flow conditions up to ultra-high vacuum.

5GVM-100ISOF-VV-S

Gate valve, manual | 410635

Min. pressure

0.75E-9 Torr ∙ l/s

Connection type

ISO-F

Nominal diameter

100

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 1.5E-9 Torr ∙ l/s

Min. pressure

1E-9 mbar

Connection type

ISO-F

Nominal diameter

100

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 2E-9 mbar ∙ l/s

Please login to see prices.

available

5GVM-200ISOF-VV-S

Gate valve, manual | 400053

Min. pressure

0.75E-9 Torr ∙ l/s

Connection type

ISO-F

Nominal diameter

200

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 1.5E-9 Torr ∙ l/s

Min. pressure

1E-9 mbar

Connection type

ISO-F

Nominal diameter

200

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 2E-9 mbar ∙ l/s

Please login to see prices.

on request

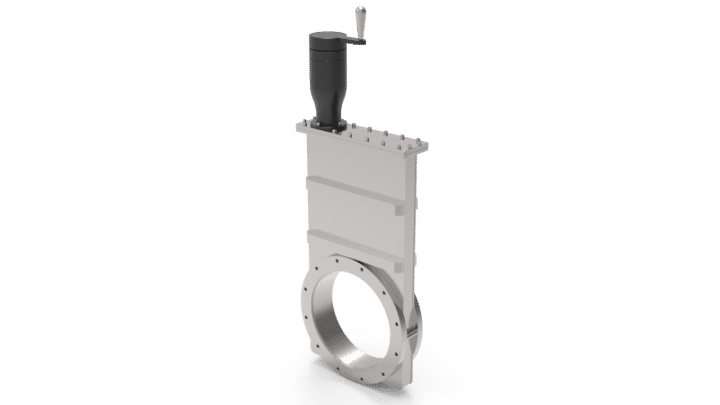

5GVM-250ISOF-VV-S

Gate valve, manual | 400055

Min. pressure

0.75E-9 Torr ∙ l/s

Connection type

ISO-F

Nominal diameter

250

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 1.5E-9 Torr ∙ l/s

Min. pressure

1E-9 mbar

Connection type

ISO-F

Nominal diameter

250

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 2E-9 mbar ∙ l/s

Please login to see prices.

on request

5GVM-40CF-MV-S

Gate valve, manual | 411490

Min. pressure

0.75E-10 Torr ∙ l/s

Connection type

Nominal diameter

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

OFHC

Leak rate

< 1.5E-9 Torr ∙ l/s

Min. pressure

1E-10 mbar

Connection type

Nominal diameter

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

OFHC

Leak rate

< 2E-9 mbar ∙ l/s

Please login to see prices.

available

5GVM-63CF-MV-S

Gate valve, manual | 400059

Min. pressure

0.75E-10 Torr ∙ l/s

Connection type

Nominal diameter

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

OFHC

Leak rate

< 1.5E-9 Torr ∙ l/s

Min. pressure

1E-10 mbar

Connection type

Nominal diameter

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

OFHC

Leak rate

< 2E-9 mbar ∙ l/s

Please login to see prices.

available

5GVM-63ISOF-VV-S

Gate valve, manual | 400046

Min. pressure

0.75E-9 Torr ∙ l/s

Connection type

ISO-F

Nominal diameter

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 1.5E-9 Torr ∙ l/s

Min. pressure

1E-9 mbar

Connection type

ISO-F

Nominal diameter

Actuation

Manual via hand wheel

Material Housing

Steel

Valve plate seal

FKM

Housing seal

FKM

Leak rate

< 2E-9 mbar ∙ l/s

Please login to see prices.

available
