Edge Welded Bellows

Edge welded bellows are flexible connecting elements between vacuum flanges or end fittings of any kind. The edge welded bellow is not a rigid body but can overcome a specified working stroke.

Learn more
Edge Welded Bellows | 300563
Nominal diameter
16
Connection type
CF
Lifecycles
10000
Compressed length
1.909 ″
Extended length
2.697 ″
Free length
2.303 ″
Axial stroke
0.787 ″
Purity class
PCS
Nominal diameter
16
Connection type
CF
Lifecycles
10000
Compressed length
48,5 mm
Extended length
68,5 mm
Free length
58,5 mm
Axial stroke
20 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Bellows | 300564
Nominal diameter
40
Connection type
CF
Lifecycles
10000
Compressed length
2.48 ″
Extended length
2.874 ″
Free length
2.677 ″
Axial stroke
0.394 ″
Purity class
PCS
Nominal diameter
40
Connection type
CF
Lifecycles
10000
Compressed length
63 mm
Extended length
73 mm
Free length
68 mm
Axial stroke
10 mm
Purity class
PCS
Please login to see prices.
available

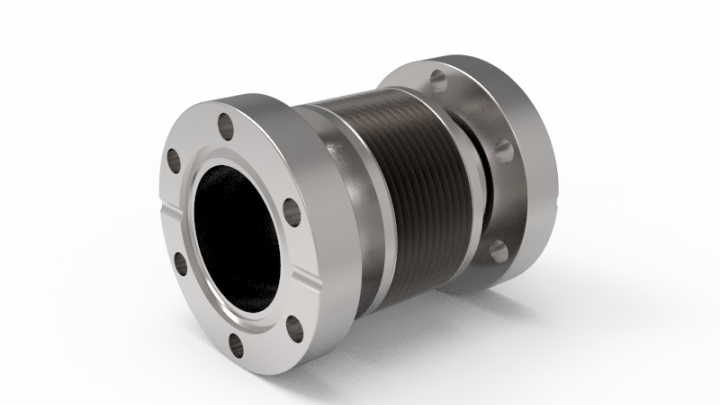

Edge Welded Bellows | 300565
Nominal diameter
40
Connection type
CF
Lifecycles
10000
Compressed length
2.559 ″
Extended length
3.346 ″
Free length
2.953 ″
Axial stroke
0.787 ″
Purity class
PCS
Nominal diameter
40
Connection type
CF
Lifecycles
10000
Compressed length
65 mm
Extended length
85 mm
Free length
75 mm
Axial stroke
20 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Bellows | 300566
Nominal diameter
63
Connection type
CF
Lifecycles
10000
Compressed length
2.992 ″
Extended length
3.78 ″
Free length
3.386 ″
Axial stroke
0.787 ″
Purity class
PCS
Nominal diameter
63
Connection type
CF
Lifecycles
10000
Compressed length
76 mm
Extended length
96 mm
Free length
86 mm
Axial stroke
20 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Bellows | 303774
Nominal diameter
16
Connection type
KF
Lifecycles
10000
Compressed length
1.264 ″
Extended length
1.657 ″
Free length
1.461 ″
Axial stroke
0.394 ″
Purity class
PCS
Nominal diameter
16
Connection type
KF
Lifecycles
10000
Compressed length
32,1 mm
Extended length
42,1 mm
Free length
37,1 mm
Axial stroke
10 mm
Purity class
PCS
Please login to see prices.
in production
Edge Welded Bellows | 309560
Nominal diameter
16
Connection type
KF
Lifecycles
10000
Compressed length
1.437 ″
Extended length
2.224 ″
Free length
1.831 ″
Axial stroke
0.787 ″
Purity class
PCS
Nominal diameter
16
Connection type
KF
Lifecycles
10000
Compressed length
36,5 mm
Extended length
56,5 mm
Free length
46,5 mm
Axial stroke
20 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Bellows | 306531
Nominal diameter
25
Connection type
KF
Lifecycles
10000
Compressed length
1.22 ″
Extended length
1.614 ″
Free length
1.417 ″
Axial stroke
0.394 ″
Purity class
PCS
Nominal diameter
25
Connection type
KF
Lifecycles
10000
Compressed length
31 mm
Extended length
41 mm
Free length
36 mm
Axial stroke
10 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Bellows | 403089
Nominal diameter
25
Connection type
KF
Lifecycles
10000
Compressed length
1.315 ″
Extended length
2.102 ″
Free length
1.709 ″
Axial stroke
0.787 ″
Purity class
PCS
Nominal diameter
25
Connection type
KF
Lifecycles
10000
Compressed length
33,4 mm
Extended length
53,4 mm
Free length
43,4 mm
Axial stroke
20 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Belows | 305443
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
1.319 ″
Extended length
1.713 ″
Free length
1.476 ″
Axial stroke
0.394 ″
Purity class
PCS
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
33,5 mm
Extended length
43,5 mm
Free length
37,5 mm
Axial stroke
10 mm
Purity class
PCS
Please login to see prices.
in production
Edge Welded Belows | 303451
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
1.378 ″
Extended length
2.165 ″
Free length
1.772 ″
Axial stroke
0.787 ″
Purity class
PCS
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
35 mm
Extended length
55 mm
Free length
45 mm
Axial stroke
20 mm
Purity class
PCS
Please login to see prices.
in production
Edge Welded Belows | 403273
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
1.575 ″
Extended length
3.15 ″
Free length
2.362 ″
Axial stroke
1.575 ″
Purity class
PCS
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
40 mm
Extended length
80 mm
Free length
60 mm
Axial stroke
40 mm
Purity class
PCS
Please login to see prices.
in production
Edge Welded Belows | 401875
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
1.673 ″
Extended length
3.642 ″
Free length
2.657 ″
Axial stroke
1.969 ″
Purity class
PCS
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
42,5 mm
Extended length
92,5 mm
Free length
67,5 mm
Axial stroke
50 mm
Purity class
PCS
Please login to see prices.
in production

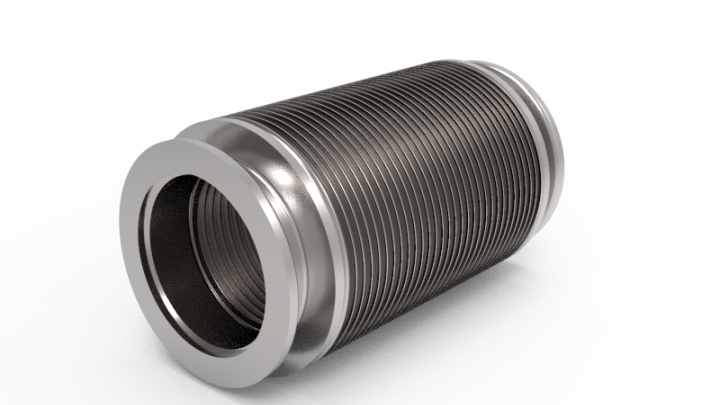

Edge Welded Belows | 402727
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
1.772 ″
Extended length
4.134 ″
Free length
2.953 ″
Axial stroke
2.362 ″
Purity class
PCS
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
45 mm
Extended length
105 mm
Free length
75 mm
Axial stroke
60 mm
Purity class
PCS
Please login to see prices.
available
Edge Welded Belows | 411578
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
1.969 ″
Extended length
5.118 ″
Free length
3.543 ″
Axial stroke
3.15 ″
Purity class
PCS
Nominal diameter
40
Connection type
KF
Lifecycles
10000
Compressed length
50 mm
Extended length
130 mm
Free length
90 mm
Axial stroke
80 mm
Purity class
PCS
Please login to see prices.
available
